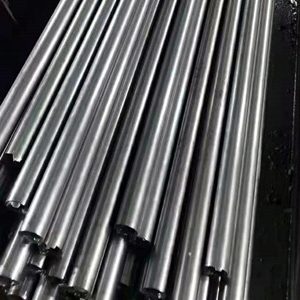

416 Free-Machining stainless steel bars



Material Specifications: ASTM A582

Steel mill: BAOSTEEL

Shape: Round bar, Hex bar

Size: 6.35mm – 63mm

Finish: Turned ground & polished finish

Type 416 is Martensitic stainless steel containing 0.15 sulfur based on 410 stainless steel for free-machining service. 416 steel offers good machinability and small friction coefficient, and its cutting performance is the best among other stainless steel and about 85% of that of carbon free-cutting steel. It has better machining properties than other Austenitic grades but lower corrosion resistance while higher strength and hardness can be obtained by heat treatment to,  for example, its strength can be up to more than 830Mpa and impact toughness AKV≥27J after nitriding treatment. Stainless steel free cutting 416 is mainly used in automatic screw machine parts, electronic components and pump valve compressor parts.



ASTM A582 Equivalent Material

ASTM/AISI/SAE UNS JIS G 4303 DIN EN 10088 GB
416 S41600 SUS 416 X12CrS13, 1.4005 Y12Cr13



ASTM 416 Chemical Composition

Grades C Si Mn P S Cr Ni Mo
416 0.15 ≤1.00 ≤1.25 ≤0.060 ≥0.15 12.0~14.0 ≤0.6 ≤0.6



ASTM 416 Mechanical  Property

Tensile Strength, Mpa 0.2% Yield Strength, Mpa Elongation Hardness, HB
550-700 340 15 207



ASTM 416 Physical Property

Density(g/cm3)20℃ 7.78
Melting point(℃) 1482~1532
Specific heat capacity [kJ/(kg·K)]     0~100℃ 0.46
Thermal conductivity [W/(m·K)] 100℃ 25.0
500℃ /
Linear expansion coefficient (10-6/K) 0~100℃ 9.9
0~500℃ 11.5
Resistivity(Ω·mm2/m)20℃ 0.57
Longitudinal elastic modulus(kN/mm2)20℃ 200



Wiho metals  is a fully stocked and leading metal manufacturer, supplier, exporters, distributors of steel mill-product forms such as pipe, tubing, bar and rod. The steel products provide by us shall be fabricated from prime quality raw materials and is fully certifiable to industrial specifications like ASTM and ASME or other relevant standards. Wiho metals supply and stock a large inventory of free-cutting steel grade 416 (S41600/ SUS416/ X12CrS13) round bar used for machined parts requiring higher strength and wear resistance. For more information, please contact us or fill in the form below.
